AIC200 AIR FILTER REGULATOR
AIC200 Air Filter Regulator is a stable auxiliary component that accepts air pressure ranging from 0.3 to 1 MPa from an air compressor,purifies it, and adjusts it to any desired output pressure value within the range of 0.16 to 0.85 MPa to maintain stable operation.
• Stable output pressure and sensitive response • Robust and durable structure
• High filtration accuracy: 5 µ m • Easy to install and maintain
• Multiple interface types

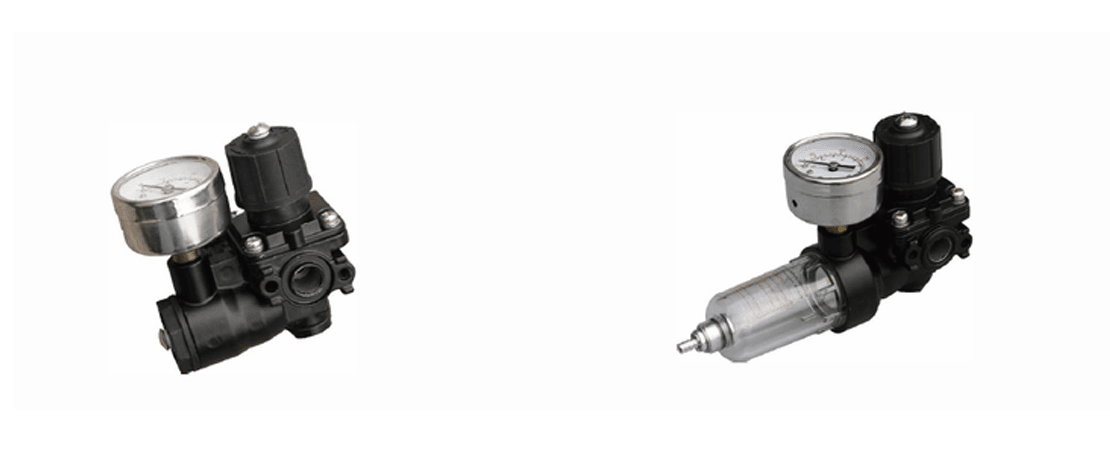

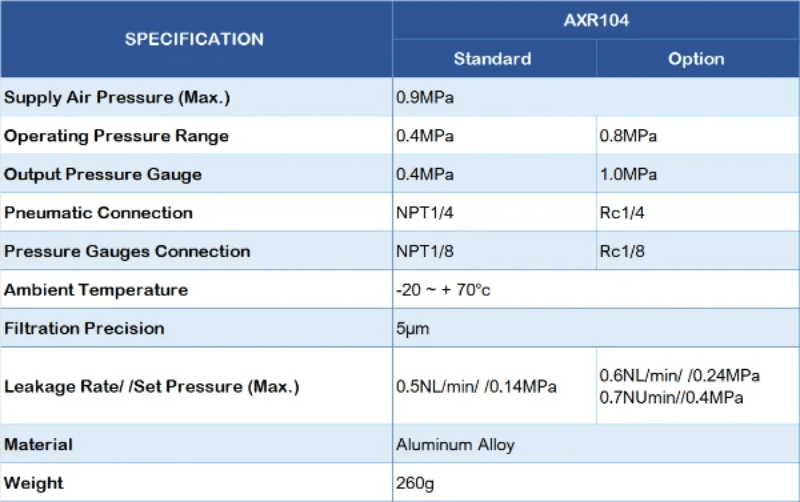

AXR104 AIR FILTER REGULATOR
• Light weight and compact size
• No need for fixing brackets: can be directly connected to positioners or other equipment
• Filter with fiber cloth tube: low fluid resistance
• Free selection of air source interface direction

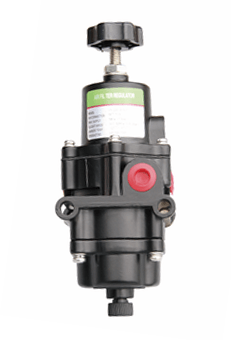

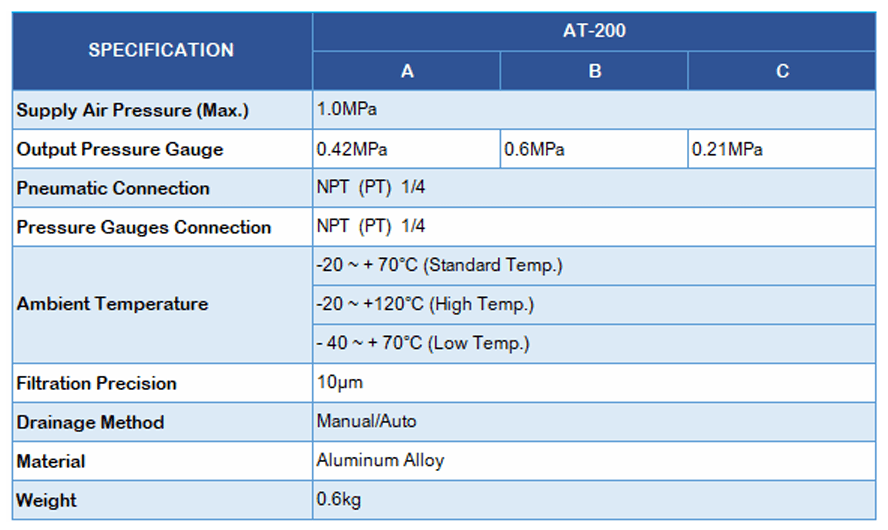

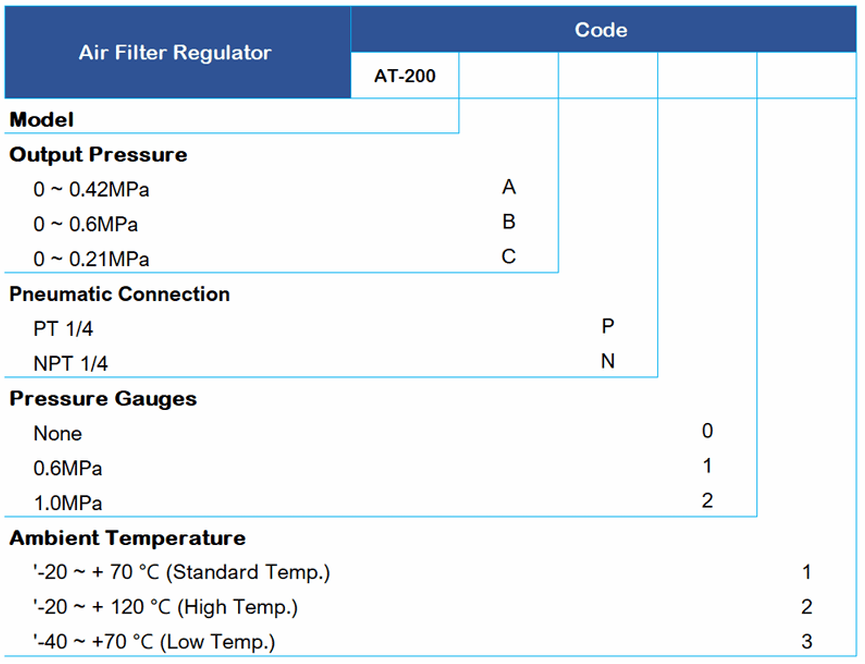

AT-200 AIR FILTER REGULATOR
AT-200 Air Filter Regulator is a device used on pneumatic control valves. It receives supply air pressure from the main air pipeline,reduces it to a set pressure value, and then delivers stable supply air pressure to the positioner or other related equipment.
• Stable output pressure and sensitive response
• Robust and durable structure
• High filtration accuracy
• Automatic drainage (Option)
