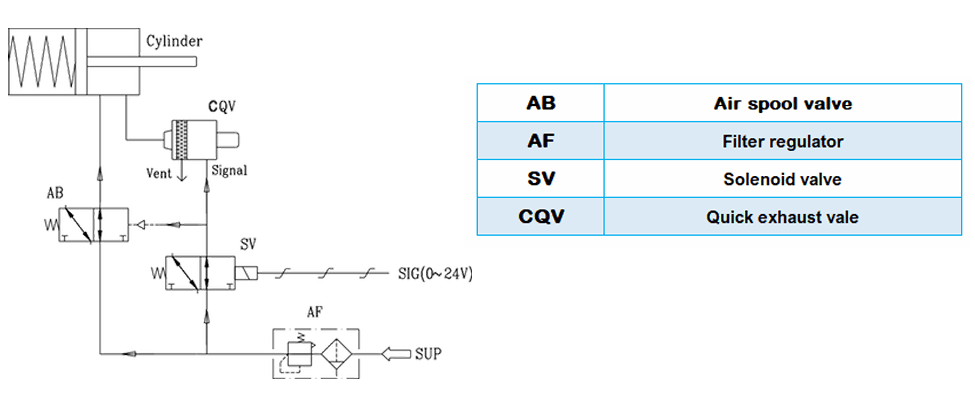

CQV series quick exhaust valve is used for pneumatic actuator that need to discharge the cylinder pressure, so that the actuator can act quickly.
Feature:
1. Compact structure design with high reliability.

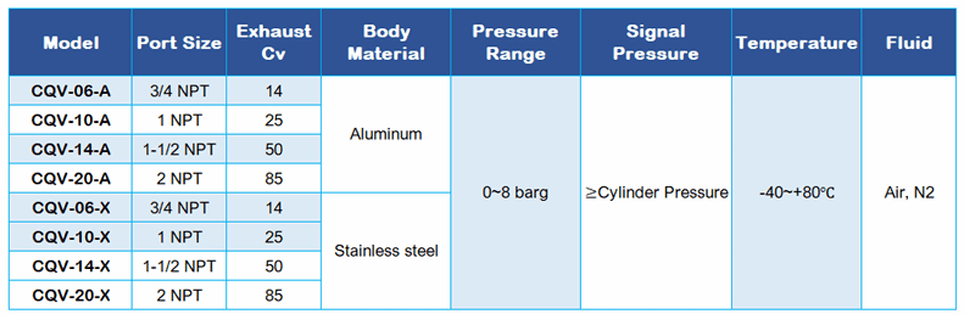

2. Large exhaust Cv capacity and can be adjustable.
3. Only for exhaust application, so it must be used together with air spool valve.
