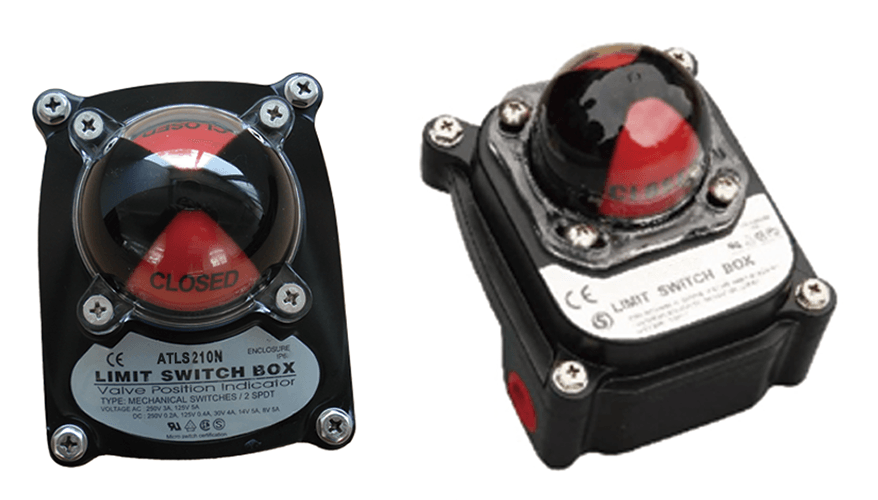

ATLS Series Limit Switch is a device that detects the switching position of thevalve, sends a switching signal to the control room, and confirms the switching
state of the valve through an external dome indicator.
Feature
• High reliability: Metal enclosure with dustproof and waterproof design.• Adjustable limit: Supports adjusting the trigger position to adapt to the stroke
requirements of different valves.
• Strong compatibility: Output signals compatible with multiple control protocols.

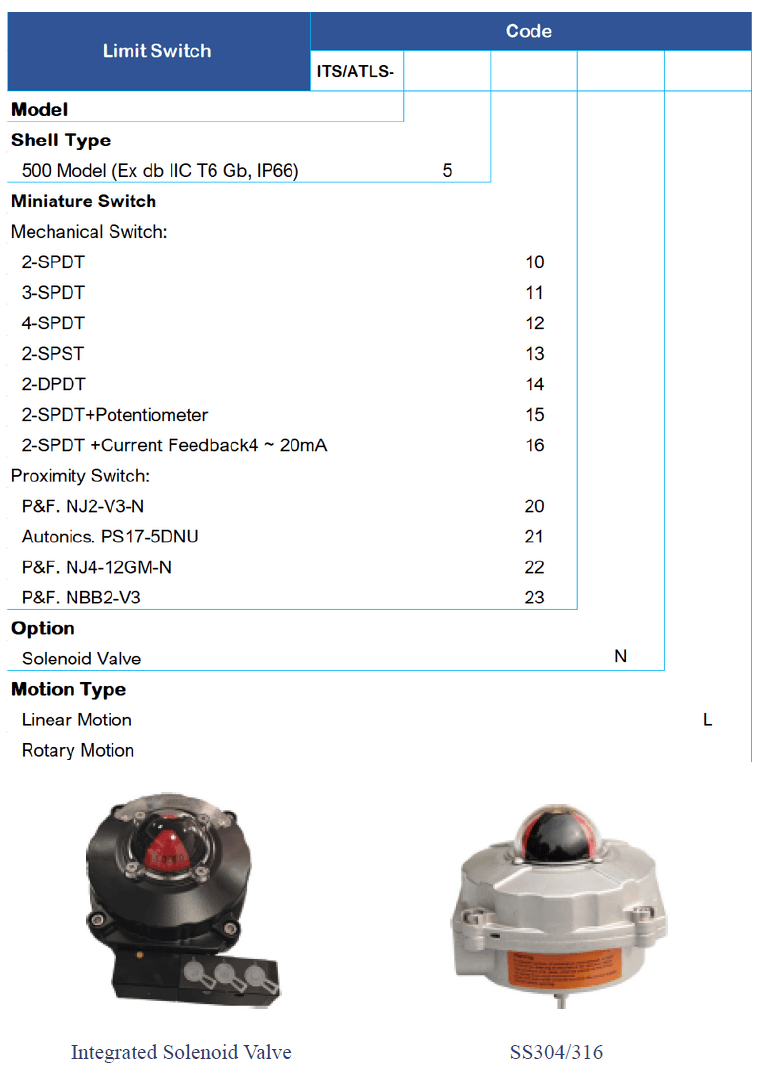

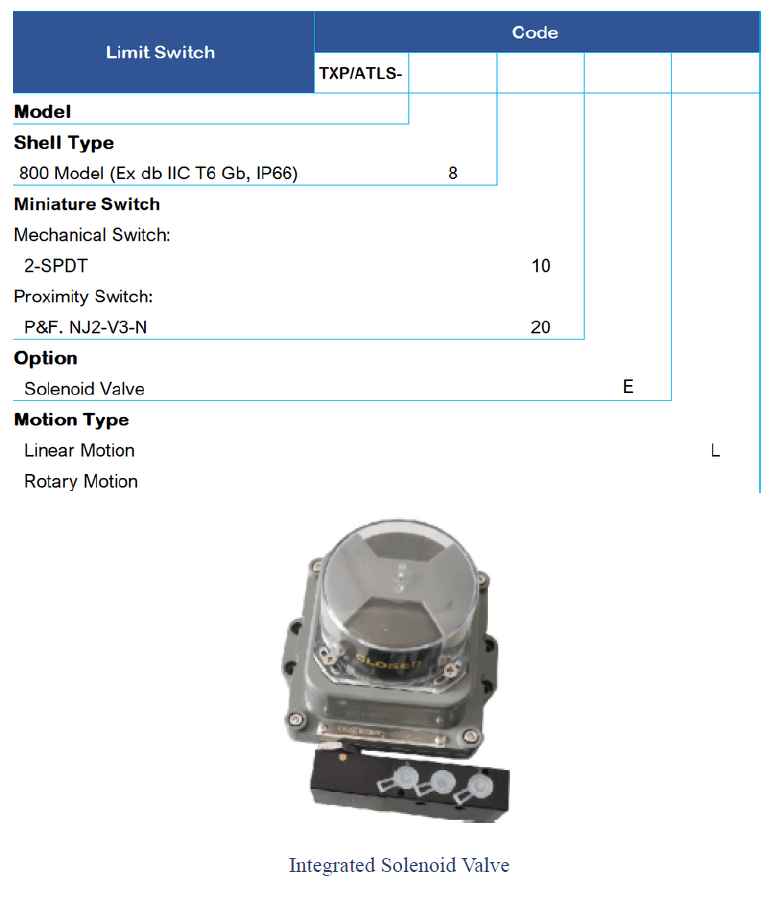

• Integrated solenoid valve: Compact structure, easy to install. (ITS/ATLS5OO;TXP/ATLS800 )

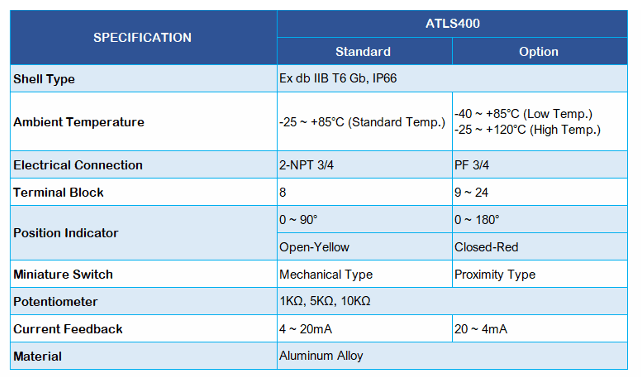

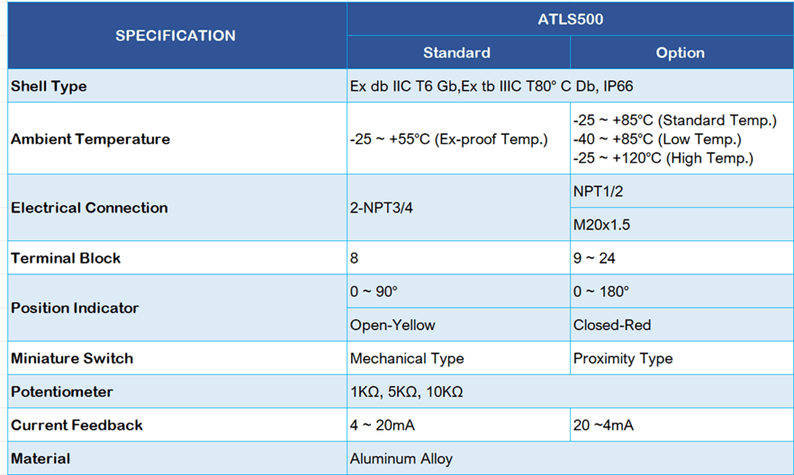

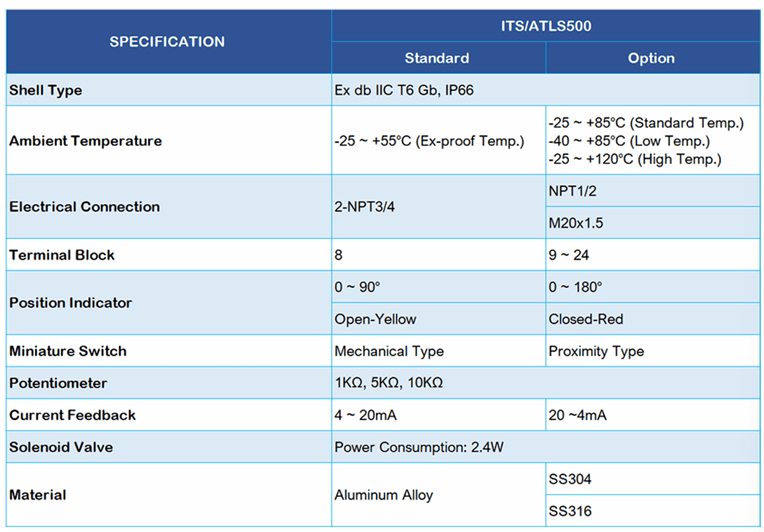

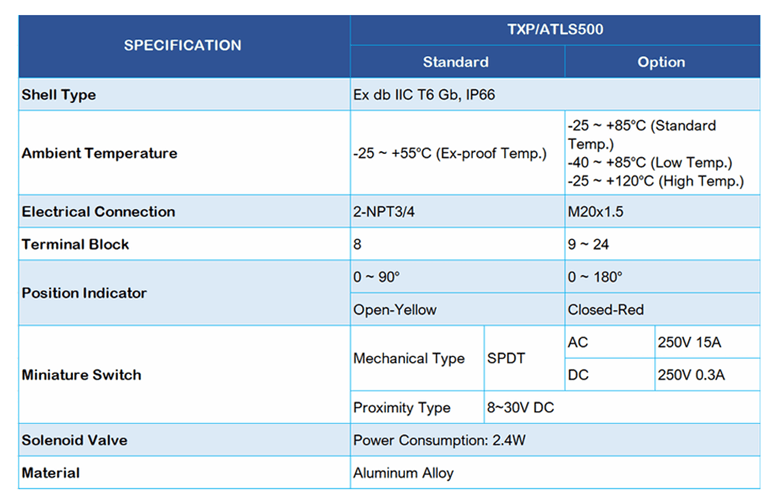

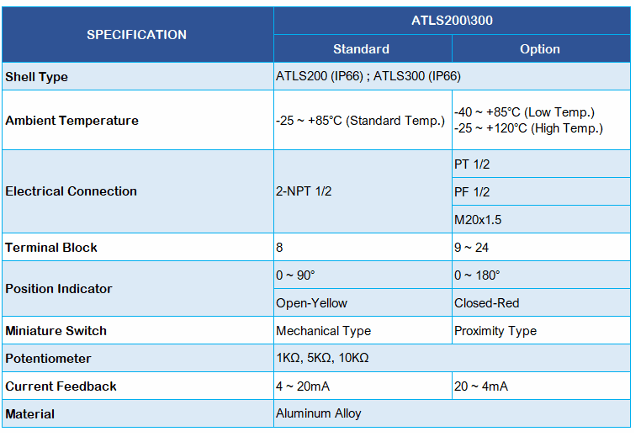

Technical Parameters
