AT4-Y Series Scotch Yoke Hydraulic Actuator

1.Output torque: max. 400,000N.m
2.Hydraulic pressure: low operating pressure: 5MPa;Medium operating pressure: 16MPa; High operating pressure: 31.5MPa
3.Hydraulic medium: hydraulic oil or any other flame-resisting hydraulic fluid
4.Ambient temperature:-30℃~+100℃ (or special temperature according to user requirements)

More Details

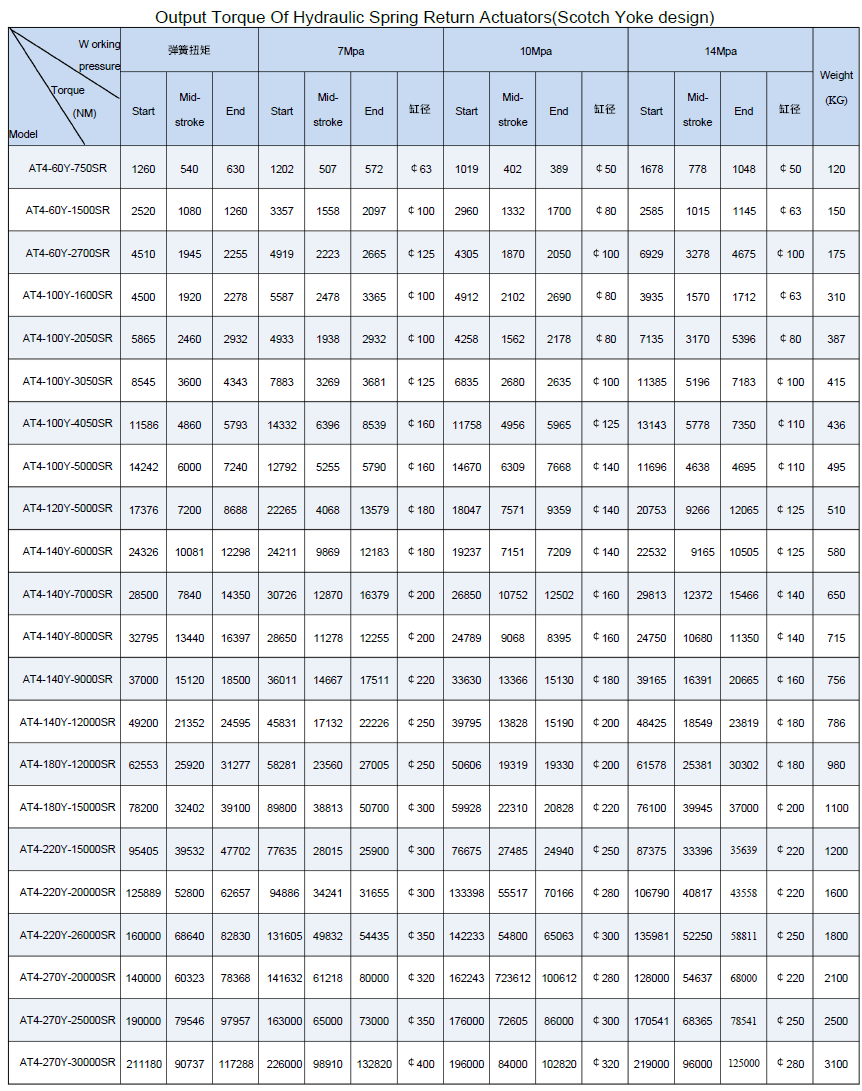

Scotch Yoke Spring Return Actuator

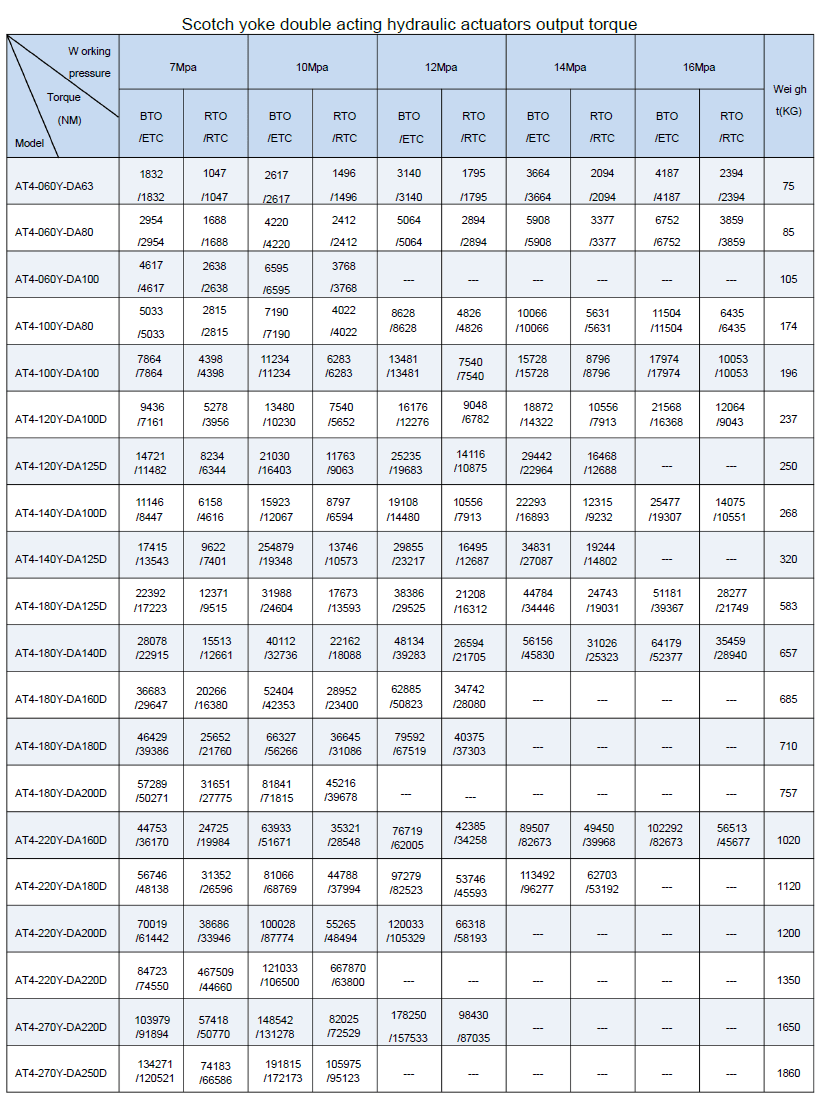

Scotch Yoke Double Acting Hydraulic Actuators
